Home/Solutions/Irrigation Pump Controller
Product 01 · Smart Irrigation

Irrigation Pump Controller

Know the moment power arrives. Start your pump from anywhere.

Farms in India rarely get 24/7 three-phase power. The Creatronix Pump Controller watches the supply for you, tells you the moment power returns, and lets you start, stop and schedule your borewell pump by SMS or the mobile app. Built-in 4G means it works wherever you are.

Enquire about this productBrochure (PDF)

Also available as a dark-theme brochure.

Pump controller installed beside the existing starter in a pump house, connected over 4G to the Creatronix cloud and the farmer's phone, with the submersible pump down the borewell
  1. 1
    Pump controller4G unit beside the starter
  2. 2
    Existing starterController works alongside it
  3. 3
    3-phase gridIntermittent rural supply, sensed continuously
  4. 4
    Submersible pumpDown the borewell, fully protected
  5. 5
    4G networkAny mobile coverage
  6. 6
    Creatronix cloudStatus, history, schedules
  7. 7
    Farmer's phoneSMS or mobile app
  8. 8
    Open fieldFlood irrigation by the hour
At a glance

Everything you need to run a borewell remotely

Power-return alerts

Senses 3-phase supply and notifies you instantly.

Start by SMS

Reply to the alert and irrigation begins. No smartphone needed.

App + hourly schedules

Plan flood irrigation by the hour for open fields.

Built-in 4G

Control from anywhere with mobile coverage.

Why it matters

Built for how power really reaches farms

Three-phase power on Indian farmland arrives in unpredictable windows, often at night. Farmers walk to the borewell to check, wait, and walk back to switch off.

Missed windows mean missed irrigation; dry runs and phase faults mean burnt motors.

How it works

From power returning to water in the field

  1. Power returnsThe controller senses the 3-phase supply the moment it comes back.
  2. You're notifiedAn SMS and app alert says power is on and the pump is ready.
  3. Start irrigationReply by SMS or tap Start in the app, from anywhere.
  4. Runs protectedFaults stop the pump at once; schedules end on time.
Protection built in

Your motor is the most expensive part. We guard it.

Dry-run protectionStops the motor when the borewell runs dry or the pump loses water, before the winding overheats.
Rotor-stuck (locked rotor)Detects a jammed rotor at start-up and cuts supply instead of letting the motor burn out.
Wire-cut & single-phasingTrips instantly on a cut cable or a missing phase, a leading cause of burnt submersible motors.
Over / under voltageHolds the pump off while the supply is outside the safe band, and restarts only when it recovers.
Phase imbalanceWatches all three phases and protects the motor from unbalanced rural supply.
Overload / over-currentTrips on sustained over-current from choked pipes, sand or a failing bearing.
Control

Three ways to control your pump

SMS commands

Works on any phone. Simple commands to start, stop and check status, with a confirmation reply.

Mobile app

Add the controller as a device, see live status, power history and every protection trip.

Hourly schedules

For open-field flood irrigation without drip: set the hours, the pump runs only while power is available.

At a glance

Key specifications

Supply
3-phase agricultural pump starters
Network
4G LTE, built-in SIM slot
Control
SMS commands + Creatronix mobile app
Scheduling
Hourly-duration irrigation schedules
Alerts
Power ON / OFF, pump status, every trip
Protection
Dry run, rotor stuck, wire cut, voltage, phase, overload
Expansion
Built-in wireless for a 2nd pump or sensors (new generation)
Grows with your farm

One platform, three steps

This productPump ControllerOne pump, 4G, SMS + appMulti-PumpAdd a second pump on the same SIMWith SensorsBecomes your farm IoT gateway
FAQ

Frequently asked questions

Do I need a smartphone to use the pump controller?

No. You can start, stop and check the pump with simple SMS commands from any phone. The Creatronix mobile app adds live status, power history and hourly schedules.

How does it know when power comes back?

It senses the 3-phase supply at the starter and alerts you by SMS and in the app as soon as power returns, so you can start irrigation straight away.

Which motor protections are built in?

Dry-run, rotor-stuck, wire-cut and single-phasing, over and under voltage, phase imbalance and overload protection.

Can I add sensors later?

Yes. The sensor edition works as your farm's IoT gateway: add a wireless weather sensor for temperature and humidity now, with a borewell groundwater-level sensor upcoming. Readings travel over the same 4G SIM.

Works with

Related solutions

Irrigation Valve Controller
Product 02Sensor Edition

Irrigation Valve Controller

A fully solar-powered controller for four drip irrigation valves, linked wirelessly to the Pump Controller and run from one mobile app.

View details
Wireless Multi-Pump Controller
Product 03

Wireless Multi-Pump Controller

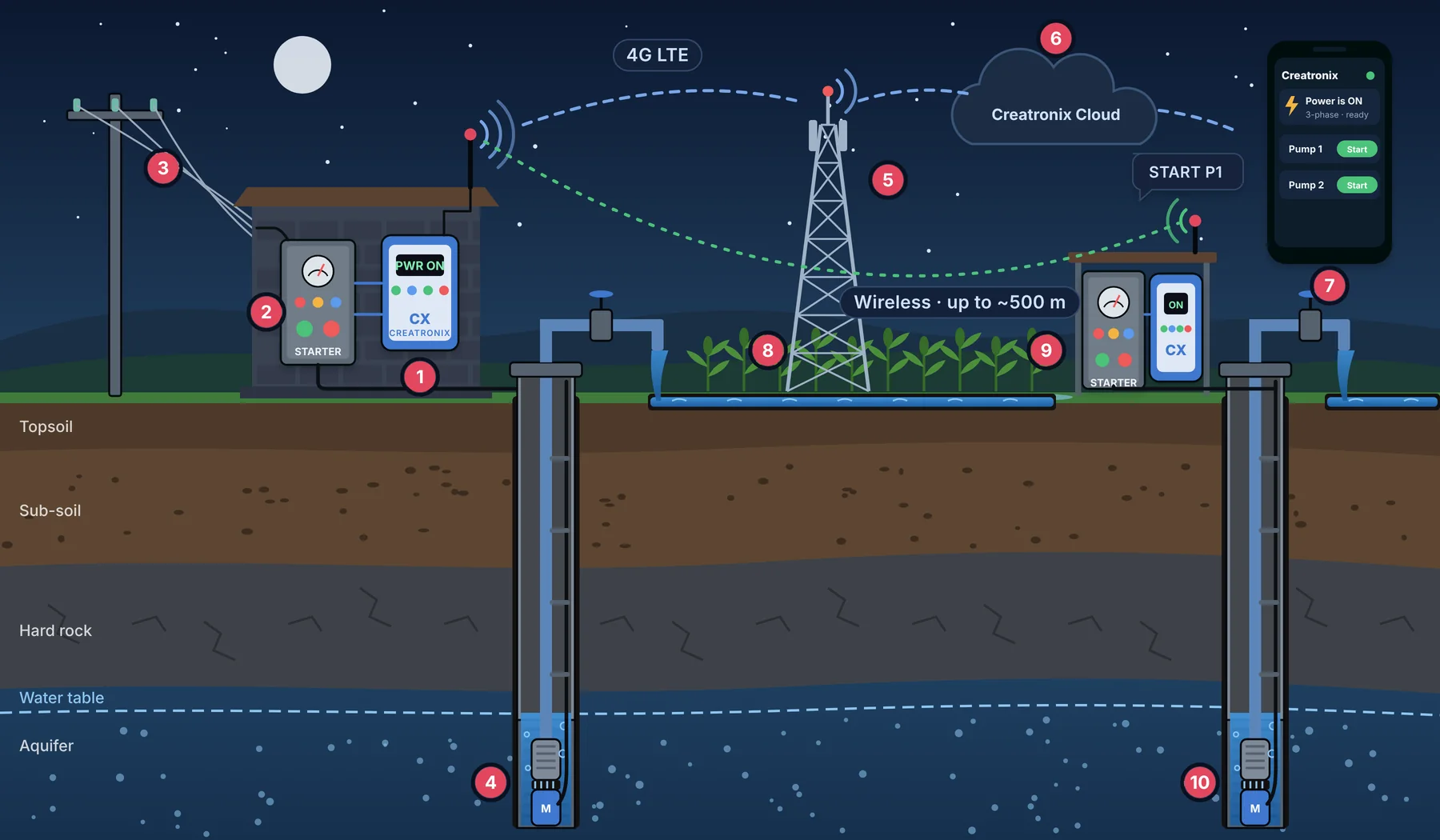

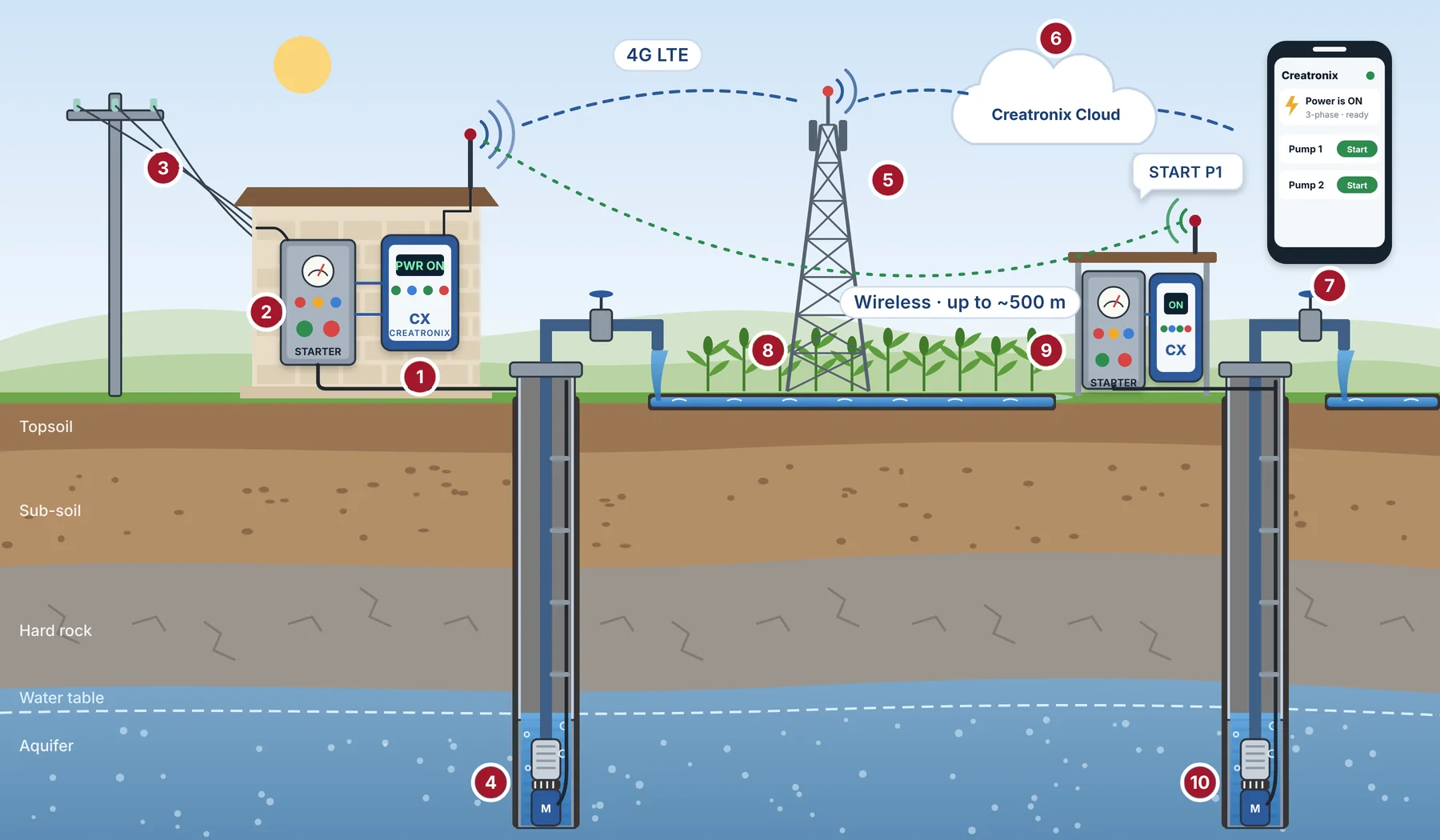

Two borewells. One SIM. One app. A 4G main controller and a secondary unit up to around 500 m away alert, control and protect both pumps.

View details

Bring your borewell online.

Talk to us about a demo, pricing or a field installation.

Send an enquiry info@creatronix.in
